Convert SLDPRT to DWG Without SolidWorks [3 Steps]

Got an SLDPRT file but no SolidWorks license? You're not alone.

Engineers and manufacturers frequently receive SolidWorks part files (.sldprt) from clients or colleagues — only to hit a wall when they need a DWG for editing in AutoCAD, sharing with a manufacturing partner, or integrating into an existing 2D workflow. SolidWorks licenses are expensive and rarely available outside of dedicated design teams.

The good news: you don't need SolidWorks to get a clean DWG.
DARE is a browser-based CAD converter that handles SLDPRT → DWG conversion in three steps — no installation, no license, no friction.

Convert SLDPRT to DWG Free

---

目次

• Method 1: Export DWG Directly from SolidWorks (If You Have Access)
• Method 2: Convert in 3 Steps Using DARE (Recommended!)
  • Step 1: Open the DARE Converter in Your Browser
  • Step 2: Upload Your SLDPRT File
  • Step 3: Convert and Download Your DWG
• Why DARE is an Excellent Choice
  • No License Required — Works for Your Whole Team
  • Browser-Based — Windows, Mac, and Mobile
  • Eliminate the Back-and-Forth with Suppliers
• What to Watch for After Conversion
• Summary
• Convert Your SLDPRT File Now — It's Free

Method 1: Export DWG Directly from SolidWorks (If You Have Access)

If you or a colleague have SolidWorks installed, exporting to DWG is straightforward:

1. Open the .sldprt file in SolidWorks
2. Go to File → Save As
3. Set the file type to DWG (*.dwg) and click Save
4. In the DXF/DWG Output dialog, select the geometry to export (faces, edges, annotations)
5. Preview the result and click OK to save

This method gives you the most control over output geometry. However, it requires an active SolidWorks license — which rules it out for most non-design teams, Mac users, or anyone working in the field.

If that's your situation, Method 2 is the faster path.

---

Method 2: Convert in 3 Steps Using DARE (Recommended!)

Don't have SolidWorks on hand? Working on a Mac? Need a quick conversion on the go from your phone or tablet? In these cases, we highly recommend the 2D/3D CAD data conversion service, DARE.

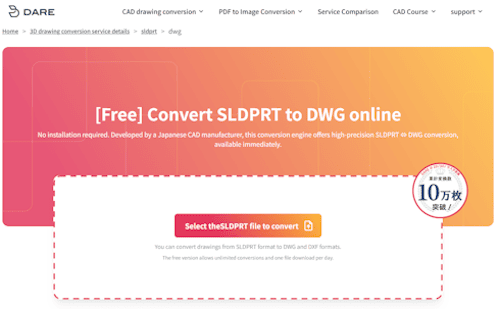

Step 1: Open the DARE Converter in Your Browser

Navigate to the DARE SLDPRT → DWG converter page from any device. DARE runs entirely in the browser with no software to install — compatible with Windows, macOS, Android, and iOS.

Step 2: Upload Your SLDPRT File

Drag and drop your .sldprt file onto the upload area, or click to browse. DARE supports batch conversion of up to 20 files at once.

Step 3: Convert and Download Your DWG

Select DWG as the output format and run the conversion. Once processing is complete, preview the result in the built-in viewer to verify geometry before downloading — a useful step if you're passing files to a drafting team or integrating into an AutoCAD workflow where dimensional accuracy matters.

---

Why DARE is an Excellent Choice

No License Required — Works for Your Whole Team

Non-design staff — sales, procurement, shop floor — can convert files independently on their own devices. No need to route every conversion through a licensed workstation.

Browser-Based — Windows, Mac, and Mobile

DARE is a cloud service. There's nothing to install or maintain. Whether you're on a Windows desktop, MacBook, iPad, or Android phone, the workflow is identical.

Eliminate the Back-and-Forth with Suppliers

When you receive an SLDPRT and need a DWG, converting it in-house removes the need to ask the sender to re-export in a different format — saving turnaround time on every job.

---

What to Watch for After Conversion

A few practical checks worth running after any SLDPRT → DWG conversion:

• Units: Confirm whether the DWG is in millimeters or inches. Some converters default to one unit system regardless of the source file. Open in AutoCAD and verify a known dimension against the original.
• Layer mapping: 3D-to-2D conversions may flatten all geometry onto a single layer. If your AutoCAD workflow relies on distinct layers for different geometry types, plan to remap after conversion.
• Curve accuracy: Complex splines or curved surfaces may be approximated as polylines. Inspect critical curves before using the file for detailed drafting or manufacturing reference.

---

Summary

If you need to convert SLDPRT to DWG and don't have SolidWorks:

• With SolidWorks: Use File → Save As → DWG for the most control
• Without SolidWorks: Use DARE — free, browser-based, and accurate enough for real engineering and manufacturing use

DARE's free plan supports unlimited conversions with one file download per day. No credit card, no install — just upload and go.

---

Convert Your SLDPRT File Now — It's Free

Stop waiting on someone with a SolidWorks license. Get your DWG in under a minute.

Convert SLDPRT to DWG Free

Works on any device. No installation required.
