Are you still wasting hours manually tracing over scanned images or PDF underlays in your CAD software?

For many architectural and manufacturing firms, manual tracing is a major bottleneck that leads to:

• Massive Time Loss:
  Hours spent redrawing lines instead of focusing on actual design work.


• High Outsourcing Costs:
  Spending thousands of dollars per project on external tracing services.


• Human Error:
  Risking inaccurate dimensions or missing lines during manual recreation.

The solution is to automate your workflow.

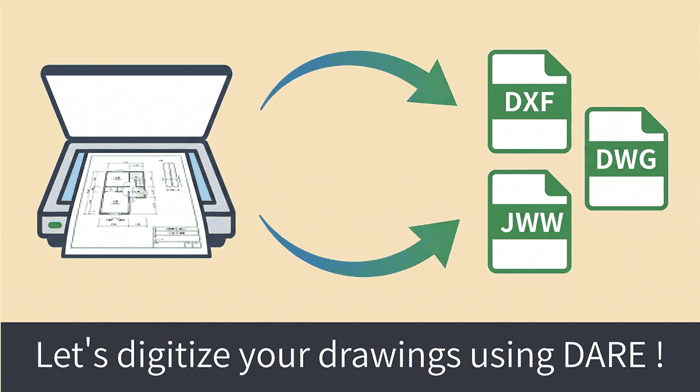

By using DARE, you can instantly transform non-editable PDF or image files into fully layered, editable CAD data (DWG/DXF).

Convert Your Drawings to CAD for Free Now

目次

• Raster vs. Vector: Why You Can’t Edit Your Scans
• The Professional Workflow: 2 Steps to High-Accuracy Data
  • Step 1: Optimize Your Scan Quality
  • Step 2: Use AI-Powered Conversion (DARE)
• Why DARE Beats Standard Conversion Tools
  • 1. Advanced OCR (Optical Character Recognition)
  • 2. Intelligent Noise Reduction & Centerline Tracing
  • 3. 100% Browser-Based (No Installation)
• How to Convert Your Drawings in 3 Simple Steps
• Stop Tracing, Start Designing

Raster vs. Vector: Why You Can’t Edit Your Scans

The primary reason you can’t simply "open" a scan in CAD is the difference between Raster and Vector data.

• Raster Data (Pixels):

  Scanned PDFs and images (JPG/PNG) are made of pixels.
  When you zoom in, they become blurry.
  CAD software cannot recognize these "dots" as individual lines or circles.


• Vector Data (Paths):

  Native CAD files (DWG/DXF) are made of mathematical coordinates.
  These lines remain crisp at any scale and can be individually selected and modified.



"Converting to CAD" is the process of restoring these pixel clouds back into mathematical vector lines.
This requires advanced AI to ensure the geometry remains accurate.

The Professional Workflow: 2 Steps to High-Accuracy Data

Step 1: Optimize Your Scan Quality

The accuracy of your CAD conversion depends 100% on the quality of your initial scan.
To get the best results, follow these settings:

• Resolution: Scan at 400–600 dpi.
  Anything lower will cause "stepped" lines that look jagged in CAD.


• Mode: Use Bitonal (Black & White).
  This helps the AI distinguish between the drawing lines and the background.


• Deskew:
  Ensure the paper is perfectly straight. If the scan is tilted, horizontal and vertical lines won't be recognized correctly as orthogonal paths.

Step 2: Use AI-Powered Conversion (DARE)

Once you have a clean scan, the next step is "Vectorization."
This is where DARE’s AI-powered engine outperforms standard free tools.

Why DARE Beats Standard Conversion Tools

Most generic converters fail because they treat text as lines and ignore background noise.
DARE is built specifically for engineers and architects.

1. Advanced OCR (Optical Character Recognition)

Left: Drawing converted from raster PDF using DARE ONE and opened in CAD software.
Right: Original raster PDF.

While standard tools turn text into thousands of tiny uneditable lines, DARE recognizes characters as Text Objects.
When you open the file in AutoCAD, you can simply double-click and edit the dimensions or labels.

2. Intelligent Noise Reduction & Centerline Tracing

Old blueprints often contain "noise" or stains.
DARE automatically cleans these artifacts.
Furthermore, it utilizes Centerline Tracing, ensuring that wall thickness and pipes are extracted as single, precise centerlines rather than double-outlined boxes.

3. 100% Browser-Based (No Installation)

You don't need to purchase or install expensive software.
DARE runs entirely in your browser, making it compatible with Windows, Mac, and even mobile devices for quick site checks.

How to Convert Your Drawings in 3 Simple Steps

1. Upload:

   **Log in to DARE ONE and upload your JPG, PNG, or Raster PDF.
   Select the "Raster Conversion" tab.


2. Convert:

   Click the "Convert" button.
   The AI engine processes the file in seconds.


3. Download & Edit:

   Download your DXF or DWG file.
   It is now ready to be opened in any major CAD software, including AutoCAD, SolidWorks, and Vectorworks.

Stop Tracing, Start Designing

The era of manual tracing is over.
By combining professional scanning habits with DARE’s AI conversion, you can slash your documentation time by over 80%.

Ready to see how accurate your conversion can be?
Try it today and get your first conversion on us!

Try DARE’s AI CAD Converter for Free Today
