When it is time to send your 3D models to manufacturing or collaborate with a client using AutoCAD, you need a clean, accurate file export. However, many engineers get frustrated when they try to export from Autodesk Fusion 360, only to find the specific file format they need is unavailable or greyed out.

This guide skips the fluff and shows you the standard method to export your designs, how to unlock restricted file formats using cloud translation, and how to export directly from your web browser.

Method 1: The Standard Local Export

If your file is already saved and you need a standard format (like the native .f3d archive file), exporting directly from the desktop application is the fastest method.

1. Click the File icon (dropdown menu) in the top-left corner and select Export.

2. Enter a Name for your exported file.

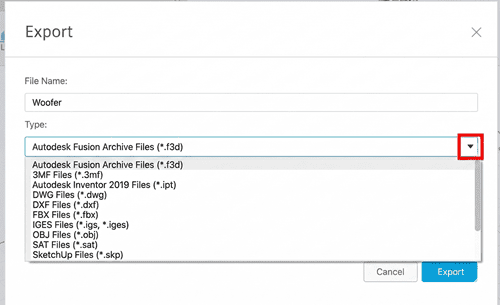

3. Select your desired Type (File Format) from the dropdown menu.

   (Note: If the format you need is missing, skip to Method 2).

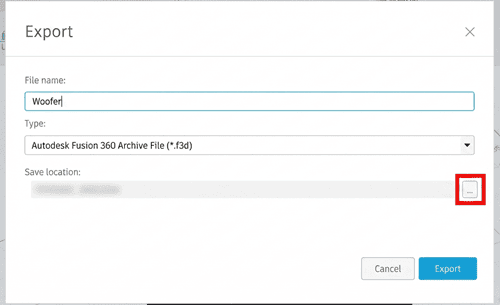

4. Specify your save Location by clicking the ... button.

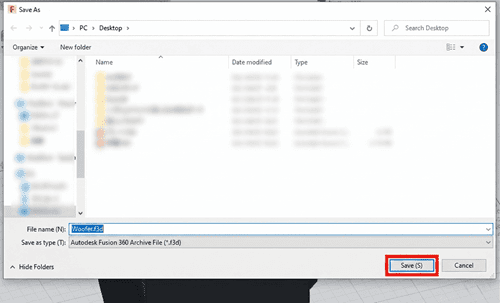

5. Choose your local folder and click Save.

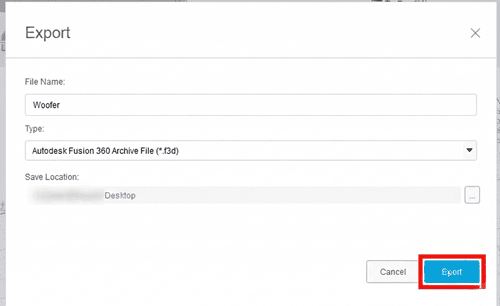

6. Finally, click the blue Export button.

7. Your file is now exported to your local drive!


Method 2: How to Unlock Greyed Out Export Formats

The Problem: Because Fusion 360 is a cloud-based software, it relies on Autodesk's cloud servers to translate complex neutral formats (like STEP, IGES, or DWG). If your design is currently only saved locally on your hard drive, these export options will be restricted or greyed out.

The Solution: You must upload the file to your Fusion cloud project first. Here is how:

1. Open the Data Panel (grid icon in the top left) and click Upload.

2. Click Select Files (or drag and drop your local file into the window).

3. Choose your local file and click Open.

4. To change where the file is saved in the cloud, click Change Location.

5. Select your target project folder (e.g., "Admin Project") and click Select.


6. Click Upload.

7. Once the Job Status says "Complete," click Close.

   Now that your file is synced to the cloud, repeat the steps in Method 1.

   You will see that all file formats (STEP, SAT, IGES, etc.) are now fully unlocked and available for export.

(Rest assured, files saved to your cloud projects are entirely private and only accessible to users you explicitly invite to your team).

Method 3: Exporting via Fusion Team (Web Browser)

If you are away from your workstation and don't have the desktop app installed, you can trigger an export directly from your web browser using Fusion Team (Autodesk Web Drive).

1. Log in to your Fusion Team / Autodesk Web Account.

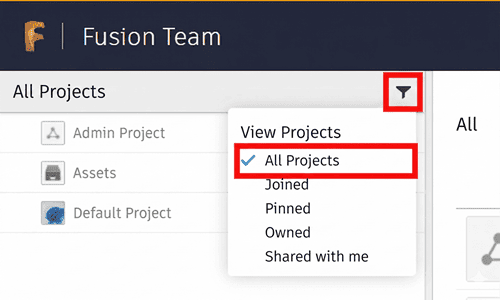

2. Navigate to your project folder. To make it easier, ensure "All Projects" is selected in the filter.

3. Locate your file, click the Export icon next to the file name, and select your desired file format from the dropdown menu.

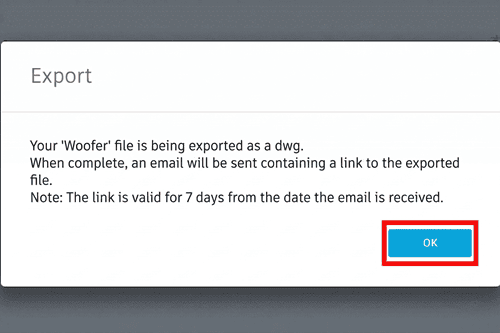

4. A dialog box will appear confirming the cloud translation has started. Click OK.

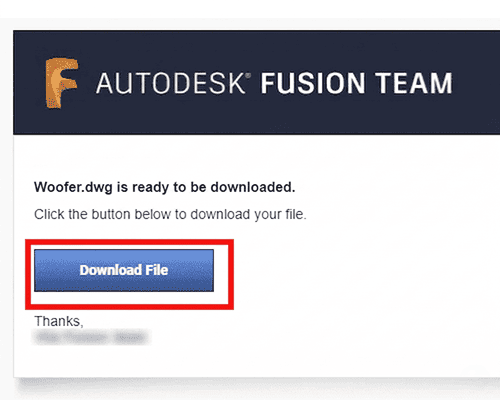

5. Autodesk will process the file on their servers. Within a few minutes, you will receive an email. Click the Download File button in the email to grab your exported model.
